Model Parameter

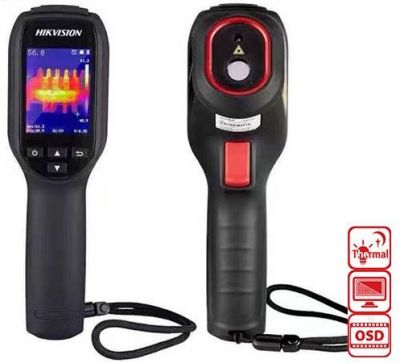

DS-2TP31B-3AUF

Handheld Thermography Camera

Image sensor

Uncooled Focal Plane Arrays

Max. Resolution

160 × 120

Pixel Pitch

17μm

Response waveband

8μm to 14μm

NETD

< 40mK (@ 25 °C,F#=1.0)

Field of View

37.2° × 50 °

Focal length

3.1 mm

Thermal Module

IFOV (mrad)

5.48 mrad

Min. Focus Length

≥ 150 mm

Aperture

F 1.1

Monitor

320 × 240 resolution 2.4’’ LCD display

Image Display

Palettes

Black hot, White hot, Rainbow, Ironbow 3 thermometry points: Max. Temperature; Min.

Rules

Temperature; Center Temperature

Thermography

Thermographic Range

30°C to 45 °C

Thermographic Accuracy

±0.5 °C

Battery Type

Rechargeable Lithium Battery

Battery Operating Time

8 hours continuous running

Storage

Replaceable memory card (default 8G, support up to 128G storage)


Thermal image

Battery

Video

N.A.

Language

English

Power

3.7 V DC/0.4 A

Power Consumption

Less than 1.2 W

Hardware Interface

micro USB

Working Temperature

-10 °C to 50 °C (14 °F to 122 °F)

Protection level

IP54

Drop Test Height

2 m (6.56 feet)

Dimension

196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)

General

Weight

Approx. less than 350 g (0.77 lb)
